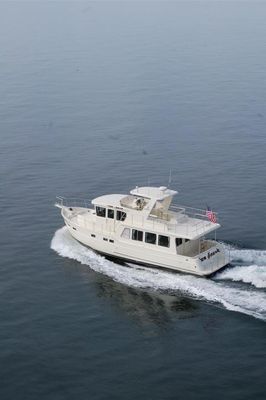

North Pacific 49 Pilothouse - main image

2014 North Pacific 49 Pilothouse

location icon Blaine, Washington, United States
Year 2014
Length 49 ft
Builder/Manufacturer North Pacific Yachts Inc.
Price US$715,000

2014 North Pacific 49' Pilothouse. A beautiful boat! Comfortable and well made.

Well-equipped, capable and proven, Ter Bear is a great vessel for long-range cruising in the Pacific Northwest. With high quality construction throughout and based on a solid semi-displacement hull, you’ll feel both safe and comfortable on board. The salon is expansive and features two full recliners as well as a dinette large enough to comfortably sit 6. The galley rivals those found on many 65’+ boats with large counter surfaces, lots of storage and dual sinks. Ter Bear is built with the most popular guest stateroom layout. The flexible room has two lower single beds that can slide together to make a queen and there is a fold down bunk. The master stateroom has a surprising amount of storage and features a low island queen bed that is easy to get around and make. The two-head, two-shower design means owners and guests have plenty of privacy even on longer voyages.  Upstairs is a pilothouse with excellent visibility. Two helms seats and a large L bench seat with a table means that owners and crew can comfortably cruise together. Ter Bear is built with the standard flybridge and hardtop.

The single 305hp Cummins will provide comfortable cruise speeds of 7-10 knots. At 7 knots fuel consumption is approximately 3 GPH, at 8 knots it’s 5 GPH and at 10 knots it’s 10 GPH. Top speed is around 11.5 knots.

Like all NPs equipment and wiring is easily accessed throughout.

Compare Ter Bear the layout and space that Ter Bear offers to other boats in the 55-60’ range.

Specifications

Year built 2014
Category Power
Length 51'6 ft
Beam 15'4 ft
Cabins 2
Double Berths 3
Construction Fiberglass
Min Draft 4'6 ft
Drive Type Direct
Engines 1
Total Engine Power 305 hp
Cruising Speed 8 kn
Prop. Cruise Speed 1800
Maximum Speed 11.5 kn
Range 1,265.86 mi
Fuel Tanks 1
Fuel Tank Cap. 500|gallon
Fuel Tank Mat. GRP
Water Tanks 1
Water Tank Cap. 350|gallon
Water Tank Mat. GRP
Holding Tanks 1
Holding Tank Cap. 65|gallon
Holding Tank Mat. GRP
Dry Weight 48,000 lb
Displacement Type Dry Load

Engine 1 Specifications

Make: Cummins
Model: QSB5.9L
Drive Type: Direct
Fuel: Diesel
Engine Power: 305hp
Type: Inboard
Propeller Type: 4 Blade, Alloy
Key Layout Features

Spacious Salon/Galley:

Starboard side - two full electric recliners with cabinet in between
Starboard side fwd - large storage cabient

Port side - H shape dinette - can seat 6 - convertible bed

Large galley with plenty of counter space
Double stainless steel sink
Lots of storage
Miele dishwasher, Sea Freeze fridge/freezer, GE convection microwave, 3 burner cooktop

Guest Stateroom:

Three single beds
Two beds slide together to make a queen - See video link below

Master Stateroom:

True queen island bed- Easy to make
High ceilings and large portholes for a feeling of spaciousness
Lots of storage drawers and cabinets
Spray chine raised so there is no "chine slap" sound

Two spacious heads w/ two separate shower stalls

Pilothouse

Two single helm seats
Large L shaped bench seat - convertible bed - folding table

Flybridge w/ full controls and instruments standard
Hardtop

Key Equipment

Cummins 5.9L QSB 305hp engine w/ 160amp alternator
9Kw Northern Lights generator
Magnum MS2812 inverter/charger
Side Power bow thruster
Side Power stern thruster
Hurricane II hydronic heat w/ 4 zones, defrost and instant hot water heat
Dishwasher
Hardtop
Nice Garmin system
Much more - see full specs


Full Equipment List

360 Tour: http://www.seevirtual360.com/38592

Equipment list for NP49, Ter Bear

Solid, hand-laid fiberglass hull. Outer two layers are vinyl ester resin
Superstructure cored primarily with NIDA core including all decks - Marine plywood squares where required Fully integrated swimming platform
International paints micron Extra anti-fouling
International paints epoxy barrier coating below water line - Vinyl Ester resin 2 outer layers of hull

Engine Room, Propulsion and Fresh Water System:

305hp 5.9L Cummins QSB diesel engine with 160 amp alternator, ZF85A transmission
Engine room 2" sound insulation - 5 salon floor hatches for access and stairs that flip up at forward end Aluminum non-skid plate floors
Engine room light (4)
Engine room blower
Fiberglass fuel tanks (2 X 250 gallons) - fuel lines for engine 1/2 ID
Stainless steel shaft - Aqua 17
Dripless shaft seal - PSS
Precision 4 blade propeller
Hynautic 2 station hydraulic steering
Morse 2 station engine lever controls
Exhaust muffler - exhaust 6" diameter - sea water intake for engine 2"
Sea cock and strainer on engine raw water intake
Dual Racor fuel filter
Automatic bilge pump (3) - Rule
Manual bilge pump (1)
Holding tank (65 GAL) w/ macerator - No Y valve needed to select pump out or macerator discharge Fiberglass water tanks (2 X 175 gallons)
Variable speed Smart Sensor fresh water pump
Fresh water intake (2)
20 gallon water heater in engineroom
Oil change system for engine and generator

Electrical:

Northern Lights 9Kw generator

Magnum MS2812 2800W inverter/charger (pure sine wave) - with ME BMK
12v/200AMP AGM battery in battery box (3 house batteries, 2 thruster/windlass batteries, 1 engine starter, 1 generator starter)
Generator start battery (1)
Master control panel (AC/DC circuit breakers)
Bonded electrical system
120V AC outlets
IMTRA LED lighting 12V throughout interior and exterior
30 amp 125V shore power connection at the stern and at the bow
Galvanic isolator

Interior: - Chrome light fixtures, push buttons and cabinet pulls

Teak and holly flooring throughout
Teak paneling and cabinetry throughout with 7 coats of poly eurathane
Louvered doors on select cabinets
Routed cabinet tops, fiddles and other trim
Curtains on all windows
Screens on all sliding windows
Soft vinyl headliners - all attached with Velcro
Laminated safety glass on sliding windows
Full extension slides and push button locks on all drawers
Hurricane II hydronic heat w/ pilothouse defrost, 4 zones and instant hot water heat

Salon, Dinette and Galley:

LED lights (9)
A/C outlet (5)
Reading lights (2)
Small cabinet in the middle of the starboard side for a lamp, book, drink etc Leather, electric, full reclinig chair (2)

Aft cabinet starboard (2)
H shaped dinette port side - convertible bed
Staron countertop with raised edge along aft section
Double SS sink
Faucet with pullout spout
3 burner electric glass cooktop
Miele dishwasher
Sea Freeze 12v fridge/freezer with engineroom mounted compressor (quiet)
GE convection microwave
Drawers in galley (10)
Cabinets in galley
Exhaust fan above the stove - vented outside
Hatch that lifts on galley countertop (1)
One ceiling hand rail in the salon
Cabinet above galley countertop w/ wine glass holder

Pilothouse:

LED lights (6)
A/C outlet (2)
D/C outlet (1)
Map light (1)
Aluminum locking, sliding door (2)
AC & DC electrical panels - Blue Seas
High back, fully adjustable helm seat (2)
Cummins single lever electronic throttle and shift control
Windlass control and chain counter

Bow & stern thruster control
Electric fuel and water gauges
Horn control
Teak steering wheel
Defrost fan (2)
Windshield wiper (3)
Windshield washer (3)
L shaped bench seat that converts into a bed
Folding table at bench seat
Storage cabinets and drawers
Reading light above bench seat (2)
Engine gauges inacluding fuel flow on Cummins Smart Tach
Aft window and aft side windows opening and screened

Heads (2):

LED light (2)
A/C outlet (1)
Tecma toilet with fresh water flush
Mirror
Ceramic sink and chrome faucet
Shower stall - with exhaust fan
Shower control and nozzle
Opening glass shower door
Staron or garnite countertop
Opening, screened porthole window (2)
Tank watch holding tank level gauge
Towel racks and other hardware
Teak finishing in head, fiberglass in the shower
Shower drains to automatic sump pump

Guest Stateroom:

One fold down bunk and 2 single beds that convert to queen

LED light (3)
Reading light (2)
A/C outlet (1)
Opening, screened porthole window (2)
Hanging locker, cabinets and drawers (numbers depend on bed choice)

Master Stateroom:

LED light (4)
A/C outlet (2)
Queen island bed w/ white headboard and mirror
5" thick fabric covered foam mattress
Reading light (2)
Teak planks where portholes are
Cabinets along both sides of the bed
Large hanging locker
Drawers(8)
Opening, screened porthole window (4)
Opening, screened overhead hatch (1)
Linnen closet starboard side of hallway just aft of master stateroom - lots of storage

Exterior Fittings and Equipment:

Stainless steel (#316L) railing and stanchions around all edges - bolted into aluminum backing plates FRP no-skid deck on all deck surfaces
SS mooring cleats (8) - 4 in cockpit, 2 midship, 2 at the bow +1 on each side of salon
SS fuel, water and waste tank deck fittings
SS portholes
Safety glass windows
Stainless steel window frames and engine room vents

Cockpit:

Light(2)
Courtesy light (2)
Hatch to access lazarette - gas assisted
Stainless steel ladder leading to fly bridge, starboard side
Transom door leading to swim grid
Transom door on port and starboard side
Aluminum door with teak inside - access to salon
Locker on transom with fresh/sea water washdown outlet
Locker on transom with shore power connector
Fresh water shower
Swim ladder
Extra SS aft upper deck supports (2)
Folding 2" stainless steel staple railing (2)

Flybridge:

Dual helm seat
L shaped seat with table and bench seat - storage underneath
Stainless steel steering wheel
Engine gauges
Cummins single lever electronic engine control
Windlass control
Bow & stern thruster control
Radar arch hinged
Radar arch light (2)
Courtesy light (2)
D/C outlet (1)
AC outlet on starboard side (1)
Anchor light - Hella NaviLED
Navigation lights - Hella NaviLED
Stainless steel flag base
Dual trumpet air horn
Storage cabinet/propane locker on starboard side of helm seat
Storage locker/seat (2)
4 fused 12V switches to control systems and lights on the flybridge
Hard top
Solid railings around upper deck - no safety cable

Forward Walkaround:

Courtesy lights (3)
Fresh & sea water washdown hose connector
Maxwell HRC10-10 windlass
280 ft of 3/8" high test galvanized chain - Chain locker divided in half Rocna 33 anchor
Seat with cushion

Other Equipment:

Side-Power SE130 bow thruster

Side-Power SE130 stern thruster
Wireless remote for thrusters
Emergency tiller
Zincs(5)

Extra gelcoat (about 1qt)
Pre-wiring for stereo system in salon, pilothouse
Spot light with dual station controls



Garmin Equipment: Pilothouse:

(2) GPSMap 7012 multifunction display (1)
GHC20 autopilot control
(1)VHF 200

Flybridge:

(1) GPSMap 7012 multifunction display (1)
GHC20 autopilot control
(1)VHF 200

Other:

GMR24HD – Radar
GSD26 fishfinder module (CHIRP)
B265LH transducer
GHP10 corepack (autopilot)
Autopilot pump
GC10 reverse image camera installed on radar arch facing aft
VHF antenna (2)
WIFI adapter
